Description

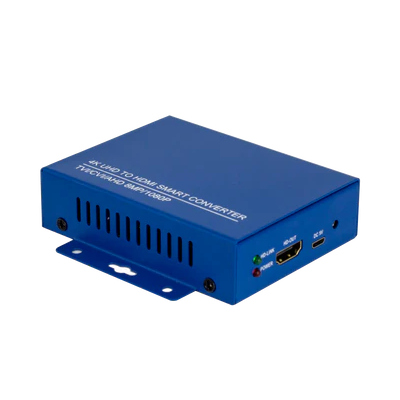

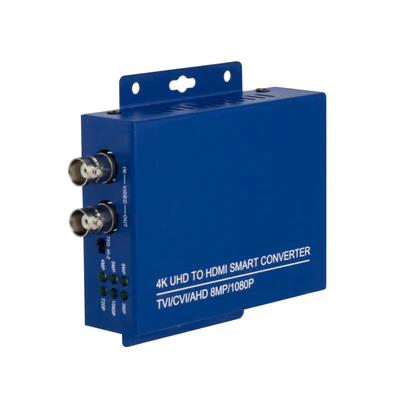

4HD-HDMI HDCCTV to HDMI Converter, TVI, CVI, AHD, CVBS to HDMI, 4K

This HDCCTV to HDMI Converter supports TVI, CVI, AHD and CVBS up to 4K Resolution. If you are looking for a solution for sending the Video Signal from your HD Security Camera to an HDMI Monitor or TV, the 4HD-HDMI will do the job. This Converter supports all major HD over Coax formats including: TVI, CVI, AHD and also CVBS (Analog). This HD Video Converter has (1) HD Input and (1) Output as well as an HDMI Output so you can link your HD CCTV Cameras to both an HD Security DVR and an HDMI Monitor at the same time.

• HD-TVI to HDMI
• HD-CVI to HDMI
• AHD to HDMI
• CVBS to HDMI

Additional Specifications:

Full HD 4K CVI/TVI/AHD+CVBS to HDMI Converter

HD Converter is designed for HDMI video transmission and HD loop out, support 4K CVI/TVI/AHD video Input, 4K Image loop output, 1080P HDMI output.

Auto match HD input, indicator visual display input resolution, it is a great advantage video transmission tool

Support up to AHD 8MP, TVI 8MP, CVI 8MP test

CVI/TVI/AHD+CVBS to HDMI, HDMI output 1080P

Connect HD Monitor, HD coaxial output HDMI Input Display simultaneous

One channel AHD/TVI/CVI/CVBS loop out

Auto recognition 720P/1080P/3MP/4MP/5MP/8MP resolution, indicator visual display

Power Connection:

The device uses 5V 1A power supply, connected to the power can be used normally, power indicator light.

Functions Introduction:

CVI/TVI/AHD+CVBS to HDMI, HDMI output 1080P 60Fps, connect HDMI output cable, HD-LINK light, display yellow light.

Support up to 8MP AHD/TVI/ CVI test.

One channel AHD/TVI/CVI/CVBS loop out.

Auto recognition 720P/1080P/3MP/4MP/5MP/8MP resolution, indicator visual display.

75O HI-Z Impedance switch:

When the IN port of the converter is connected to the camera, and the OUT is not connected to the DVR, please set the impedance switch to 75O.

When the IN port of the converter is connected to the camera and the OUT port is connected to the DVR, please set to HI-Z



How it works:

Hooking Up 1 HD over Coax Camera to 2 Monitors and a DVR:
