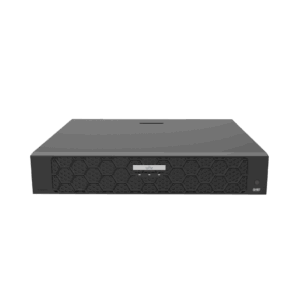

NVR516-128 Uniview 128 Channel NVR, IP Network Video Recorder with Hot Swap HDD, NDAA

Call For Price

  • Call or Log In for Dealer Price

  • 128 Channel Operation
  • Supports 3rd Party Cameras
  • Up to 4K / 12MP Resolution
  • ANR, Dewarp, Analytics



NVR516-128 Uniview 128 Channel NVR, IP Network Video Recorder with Hot Swap HDD, NDAA

Our NVR516-128 128 Channel NVR is a professional IP Network Video Recorder with advanced features and a Hot Swappable Hard Drive Capability. The 516 Series also has VCA Detect and Search (Video Content Analysis) that includes several Video Analytics functions. Ultra265 technology combines U-Code and H.265 to reduce storage space and enhance image quality cutting storage costs by 75% or more! This NVR has (16) SATA Bays and accepts up to 10TB each bay for a total of 160TB of storage.  In addition, it accepts 128 IP Cameras up to 4K, 12MP Resolution. Uniview NVR’s are ONVIF compliant with profiles S, G and T, so third party cameras are  supported. ANR Technology and Dewarp are also standard on the NVR516-128. Other great features such as a quieter fan, and IEC power cord show UNV’s attention to detail and customer satisfaction.

HOT Swap HDD and Raid Support

The 516 Series supports HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable


Compatible cameras in our Store: Uniview, Stoic IP, True View TA Series IP

EZ Station VMS

EZStation Video Management Software

Unified management for Uniview’s IP cameras, NVRs, hybrid NVRs, network keyboards, decoding devices and more. Device Management and diverse features.


EZView Mobile App

EZView Mobile App

View from anywhere via Mobile Device with our Free EZView Mobile App for Android and iOS. Uniview NVR’s support Mobile Client, Push Alerts, Email Notifications and P2P




ANR (Automatic Network Redundancy)

The NVR516-128 supports ANR (Automatic Network Redundancy). UNV cameras with MicroSD Card Slot, can automatically store video recordings into camera’s SD card when network is disconnected. Once the network is restored, the video recordings will be sent back to storage server. Thus, all of video recordings would be saved even network fails temporarily.




VCA Detect and Search

UNV 516 Series NVR’s have VCA Detect and Search for IP Cameras embedded with a wide range of smart functions. For instance, face detection, intrusion detection, scene change, crossing line detection, audio exception, defocus detection. Prime series cameras are more flexible and provide better performance.




Get the 6 Channel Decoding Cards Here: FB-HDMI6-C-NB

Get the Optional Redundant power Here: PWR-300A-IN


Take IP to the Next Level with Uniview

NVR’s from Uniview are packed with advanced features and are extremely user friendly. As a result, it has become the choice for many of our Dealers and Integrators due to ease of use and low failure rates. Uniview has completed major projects around the globe and is the perfect choice for a broad range of surveillance applications.


NVR516-128 Uniview 128 Channel NVR Quick Features:

  • Support Ultra 265/H.265/H.264 video formats
  • 64/128-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
  • Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
  • HDMI1, HDMI2 and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Redundant power supply optional
  • 2 decoding cards optional, up to 12-ch HDMI
  • Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
  • 16 SATA HDDs, up to 10TB for each HDD
  • 2 miniSAS Interfaces
  • Support 12V power output
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Cloud upgrade



Uniview NVR Features


More reasons why we Love the NVR516-128 Uniview 164 Channel NVR:

Ultra265 is more than just a compression technology. The combination of U-Code and H.265 reduces video storage cost’s by up to 75% and enhances image quality with Dynamic Frame Rate. This technology can reduce image blur and distortion while saving money on purchasing additional HDD Storage.

Uniview Ultra265

Uniview Cloud



All HD Security NVR’s shipped with Hard Drive, come with Western Digital or Seagate Surveillance Class HDD’s for maximum performance!

Surveillance Hard Drives


3 Year Manufacturers Warranty
Free Lifetime Technical Support
Ellipse Satisfaction Guarantee



Not Sure About Your Product or Compatibility? Ask an Expert!


Additional information

Weight 22 lbs
Dimensions 24 × 24 × 10 in
Camera Channels

Hard Drive Capacity

Resolution Capacity


Supported Formats

Audio Channels

Special Features

, , , , , ,


Downloadable Specifications for this Product:

UNV NVR516 Series Specifications

UNV EZView Mobile Surveillance App Datasheet

UNV EZStation3.0 Datasheet


UNV Network Video Recorders Quick Guide

UNV Network Video Recorders User Manual

EZStation 3.0 User Manual
